The Engineering of Porsche M96/M97 Engine Longevity
Specialized Diagnostics and Preventive Solutions for
the 996, 997, and 987 Platforms
At Response Motors, our approach is rooted in automotive and aerospace engineering. We view the Porsche M96 and M97 engines not as "flawed," but as high-performance machines with specific service requirements. By understanding the mechanical tolerances and metallurgical properties of these powerplants, we offer owners data-driven solutions rather than reactive repairs.
Technical Analysis
Bore Scoring: A Multi-Factor Analysis
Cylinder bore scoring—the degradation of the Lokasil or Alusil cylinder wall coating—is often misunderstood. It is a confluence of factors: piston-to-cylinder clearance, fuel injector spray patterns, and thermal management.
Our Engineering-Grade Diagnostic Protocol:
01

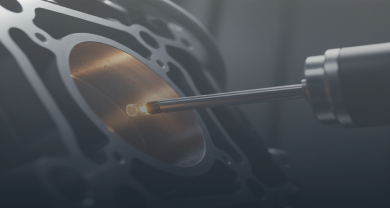

Asynchronous Borescopy

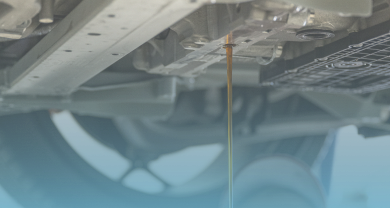

We don't just look through the spark plug hole. We perform a "Sump-Up" inspection. By removing the oil pan, we can inspect the bottom of the cylinders at BDC (Bottom Dead Center) to observe the high-load thrust faces. This is the only definitive way to verify cylinder health.
02
Fuel Injector Profiling
Often, "bore scoring" is accelerated by "bore washing" from aging injectors. We analyze your long-term fuel trims to ensure your AFR (Air-Fuel Ratio) isn't compromising the lubrication film on your cylinder walls.
03
Lubrication Kinematics:
We consult on oil viscosity and shear stability, specifically for the SF Bay Area’s climate and your specific driving profile (Street vs. Track).
IMS Bearing
The IMS Solution:
Engineering Mechanical Certainty
The Intermediate Shaft (IMS) bearing was designed to support the timing chains, but the original sealed ball-bearing design created a "closed-loop" failure point. At Response Motors, we replace statistical risk with mechanical certainty by leveraging industry-leading components and predictive data.
Our Partnership With LN Engineering
As a specialized Porsche facility, we don't settle for "OEM-equivalent" fixes. We are proud partners with LN Engineering, the pioneers of IMS replacement technology.
Permanent Fix
The IMS Solution™
For long-term engine health, we recommend the "IMS Solution"—a patented, oil-pressure- fed plain bearing. By plumbing a dedicated oil line from the engine's pressurized oiling system to the bearing, we replace the ball-bearing design with a lubricated bushing. This effectively "engineers out" the failure point, creating a permanent, lifetime component.
Ceramic Hybrid

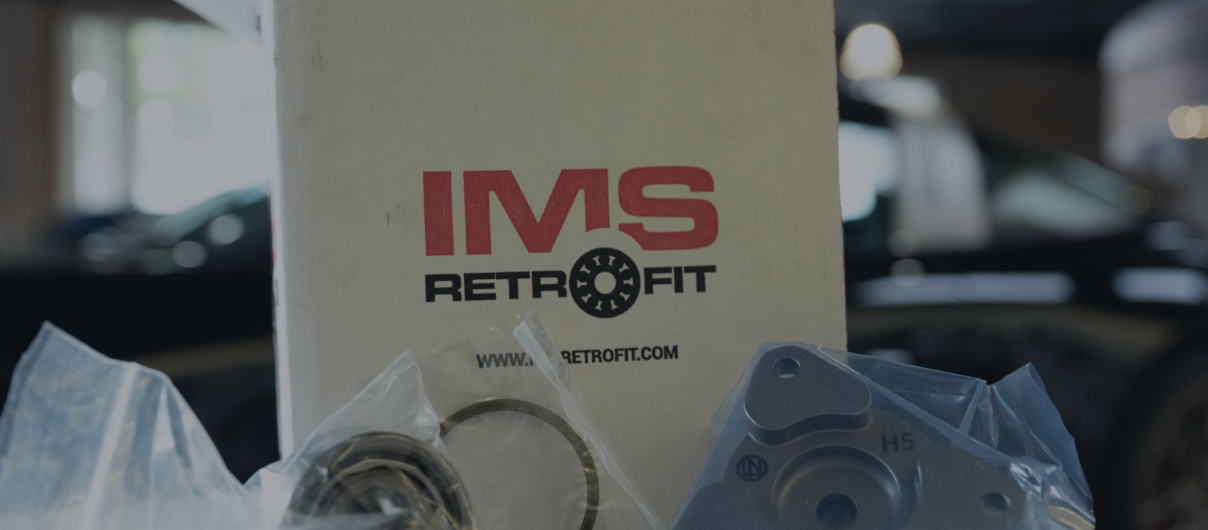

IMS Retrofit™
For specific applications, we utilize LN Engineering's ceramic hybrid bearings, which offer 50% less friction and superior thermal properties compared to original steel bearings.
Predictive Data

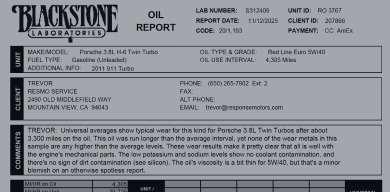

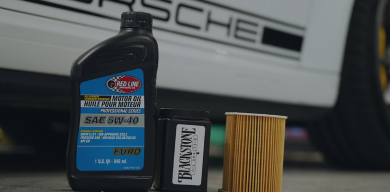

Blackstone Labs Oil Analysis
We believe in "evidence-based" maintenance. Every IMS service or major engine audit at Response Motors includes an option for Blackstone Laboratories Oil Analysis.
Spectral Analysis
We look for microscopic traces of "yellow metal" (copper/lead) or ferrous materials in your oil.
Trend Monitoring:
By establishing a baseline for your specific M96/M97 engine, we can detect an accelerating wear pattern before a physical failure occurs.
The "Early Warning" System:
If the Blackstone report shows a spike in wear metals, we can intervene with a borescope or bearing inspection immediately, saving the engine block from catastrophic failure.
Process
The Response Motors Implementation
01
Transient Analysis

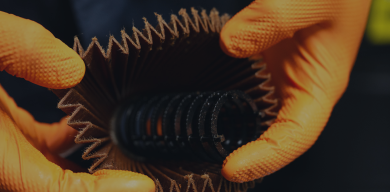

During any IMS retrofit, we perform a deep-dive inspection of the magnetic drain plug and a pleated-filter analysis to ensure no ferrous debris has already entered the lubrication circuit.
02
DME Over-Rev Mapping
We pull your ECU's "Digital Motor Electronics" data to analyze Ignition Ranges. Understanding the mechanical stresses your engine has encountered allows us to tailor our service recommendations to your car's specific history.
